Hisiwell has recently launched a series of Pin-to-Pin mixer replacements for Analog Devices (Linear Technology) parts.

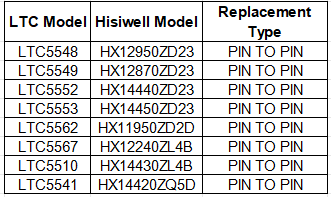

Replacement details are stated in the checkbox.
Here are snapshots of some of these models:
1. HX12950ZD23
Features:
1) Up-conversion / Down-conversion
2) Conversion Loss: 7.4dB@RFin=5.8GHz
3) Input P-1dB: 17dBm@RFin=5.8GHz
4) Input IP3: 25.6dBm@RFin=5.8GHz
5) Package Dimensions: QFN 2×3 12L
Applications：
1) Microwave Transceivers
2) Point-to-Point Microwave
3) Phased-Array Antennas
4) C, X and Ku Band RADAR
5) Test Equipment
2. HX12870ZD23
Features:
1) Up-conversion / Down-conversion
2) Conversion Loss: 8.7dB@RFin=5.8GHz
3) Input P-1dB: 18dBm@RFin=5.8GHz
4) Input IP3: 26.5dBm@RFin=5.8GHz
5) Package Dimensions: QFN 2×3 12L
Applications：
1) Microwave Transceivers
2) Point-to-Point Microwave
3) Phased-Array Antennas
4) C, X and Ku Band RADAR
5) Test Equipment
3. HX14440ZD23
Features:
1) Up-conversion / Down-conversion
2) Conversion Loss: 8.5dB@RFin=10GHz
3) Input P-1dB: 17dBm@RFin=10GHz
4) Input IP3: 21.4dBm@RFin=10GHz
5) Package Dimensions: QFN 2×3 12L
Applications：
1) Microwave Transceivers
2) Point-to-Point Microwave
3) Phased-Array Antennas
4) C, X and Ku Band RADAR
5) Test Equipment
4. HX14450ZD23
Features:
1) Up-conversion / Down-conversion
2) Conversion Loss: 9.7dB@RFin=10GHz
3) Input P-1dB: 16dBm@RFin=10GHz
4) Input IP3: 24.7dBm@RFin=10GHz
5) Package Dimensions: QFN 2×3 12L
Applications：
1) Microwave Transceivers
2) Point-to-Point Microwave
3) Phased-Array Antennas
4) C, X and Ku Band RADAR
5) Test Equipment
Please contact us for more information.
